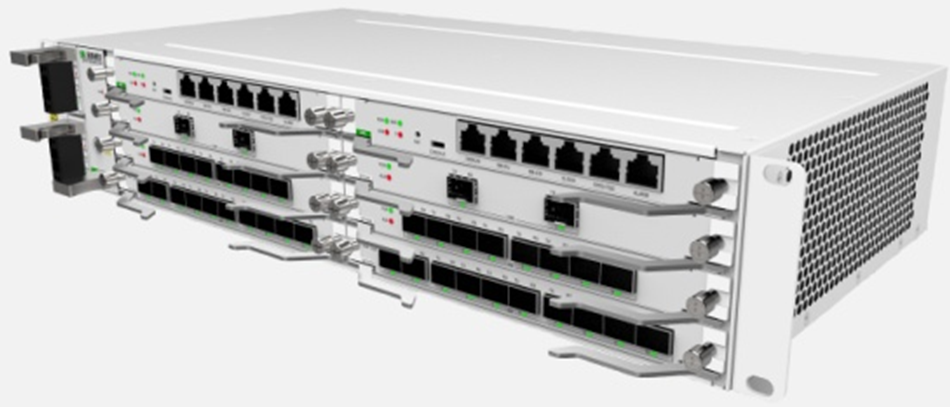

GPN7700 is a new generation packet transport platform with PTN/IPRAN double stack. It is mainly used in PSN for multi service delivery. GPN7700 supports different application scenarios for government and enterprise private line services and provides flexible bussiness scheduling and convergence.

Details



Features



Model

Description

Structure

Compact 2U structure, high integration;

Max 12*10GE/2*10GE+40GE/FE;

120G switching capacity ;

Low power consumption

Secure

CPU ingress rate limitation by CIRCBS;

Mirror rules in monitor port;

ACL;

Radius and TACACS+ authentication

Management

Auto-establishment of management tunnels;

Support third-party management platform;

Cascading Ethernet management;

In-band DCN;

Support SDN (Openflow) control ;

UniViewDA GUI NMS

Service

Flexible network structures:  P2P, linear, ring, star, etc.;

LDP and RSVP-TE;

Static/Dynamic PW service;

Hot swappable for all cards;

Hybrid  service cards in one chassis

QoS

Simple and complex traffic classification (VLAN/Port/MAC/IP based), profile is supported;

Priority/EXP scheduling mapping;

Congestion management/Traffic shaping/Rate limitation;

SP/WRR/SP+WRR queue scheduling;

HQOS

Smart Probe

Build-in RFC2544/Y.1564 hardware generator

Hardware reversal test agent;

SLA report

IEEE802.3ah, IEEE 802.1ag /Y.1731 OAM, TP 1731

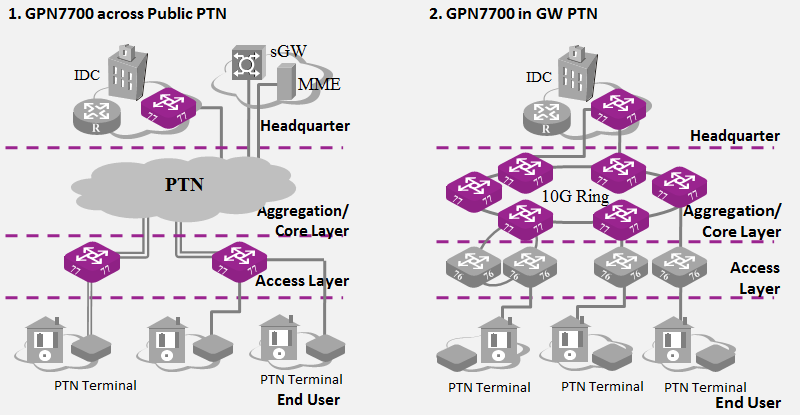

Application
